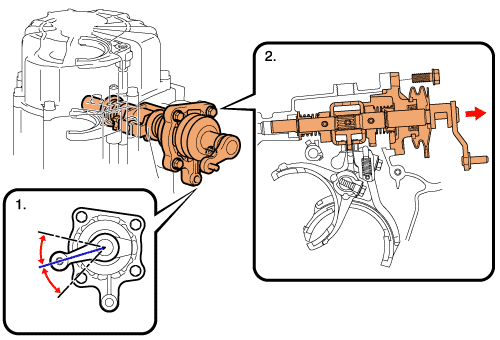

1.
|
Check neutral position
|
|
Set the shift and select lever
shaft in the neutral position.
|
| |
|
HINT:
Unless the shift and select lever shaft
is set in neutral position, this cannot be removed.
|
| |
|
2.
|
Remove shift and select lever shaft
|
|
(1)
|
Loosen the bolts in a diagonal sequence, rotating
each bolt a little at a time, and remove them.
|
| |
|
(2)
|
Pull the shift and select lever
shaft straight to remove the unit from the transaxle.
|
