Disassembly and Inspection

Inspect Differential Pinion Thrust Washer and Differential Pinion Shaft

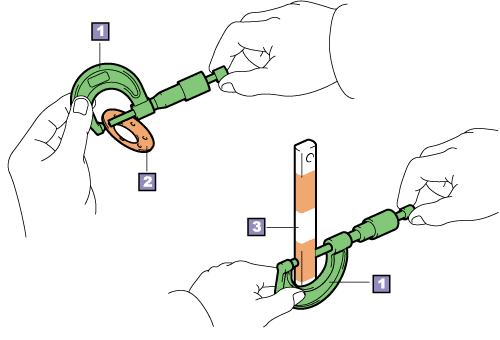

Micrometer
Thrust washer
Pinion shaft

1.
Visually inspect
Check for scuffs or damage to the sliding part with the pinion gear.

2.
Measure thickness of thrust washer
Use a micrometer to measure the thickness of the thrust washer.

3.
Measure outer diameter of pinion shaft
Measure the outer diameter of the pinion gear sliding area using a micrometer.
