Disassembly and Inspection

Inspect Differential Side Gear Backlash
Dial gauge
Side gear
Aluminium plate

To turn the gear smoothly, there is a gap between the gear teeth called backlash.

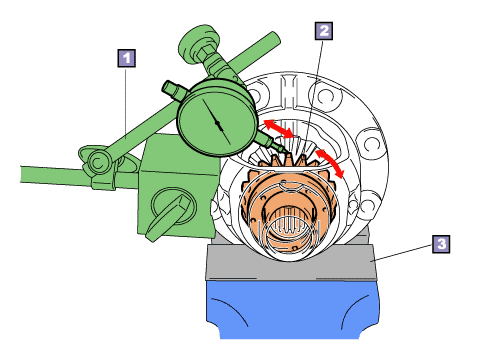

Before disassembling the differential case, measure the backlash using a dial gauge.

Measure backlash
Hold the differential case in a vise between aluminium plates.
Then measure the backlash.

NOTICE:
Do not tighten the vise excessively.

HINT:
Refer to this measured value when adjusting the backlash following the reassembly of the differential case.
