Bolt |
|
|
Retainer |
|
|
Nut |
|
|
Collar |
|
|
Clip |
|
|
|
| 1. |
Remove centre console |
| |
|
2.
|
Remove shift lever |
|

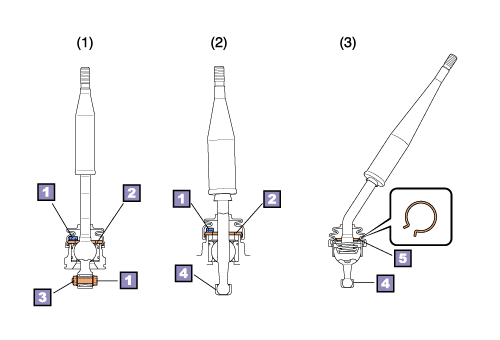

Note that the shift lever can be fastened in
three possible ways:
|
|
(1)
|
Fastened with bolts, nut and retainer |
|
(2)
|
Fastened with bolts and retainer |
|
(3)
|
Fastened with clip |
| NOTICE: |
|
•
|
The shift lever is coated with grease, so cover
it with a cloth, etc., when removing and storing it so that it does not get the
cabin dirty.
|
|
•
|
Cover the transmission with a cloth, etc., so that foreign
matter does not get into it from the shift lever connection. |
| |
|
HINT:
As the shift lever has a direction, make sure to check this
before removing the lever.
|
|
