| 1. |
Disconnect battery cable
|
| Before disconnecting
the battery cable, make a note of the information stored in the
ECU, etc. |
|
•
|
DTC
(Diagnostic Trouble Code) |
|
•
|
Radio station selection |
|
•
|
Seat position
(with memory system) |
|
•
|
Steering wheel position
(with memory system) |
| |
etc. |
|

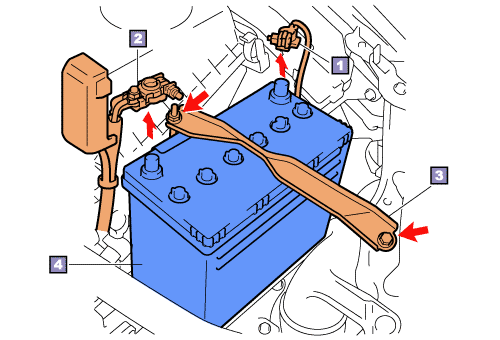

| 2. |
Remove battery |
| Remove the battery clamp
and remove the battery. |
|
(1)
|
Disconnect the battery negative
terminal cable.
|
|
(2)
|
Disconnect the battery positive
terminal cable.
|
|
(3)
|
Remove the battery clamp.
|
|
(4)
|
Remove the battery.
|
| |
| NOTICE: |
| The battery case
contains liquid electrolyte (dilute sulfuric acid), so keep the
battery level to prevent the liquid from spilling out. |
