Reassembly

Install Camshaft

Click on the underlined sentence.

to is the installation order of the bearing cap
Timing mark

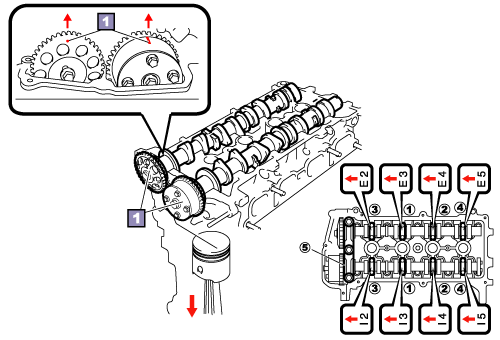

1. Install camshaft
  (1) Move the piston downward by rotating the crankshaft about 40 degrees counterclockwise from the No.1 cylinder to TDC (Top Dead Centre)/Compression.
HINT:
Timing mark location varies depending on the vehicle models, so refer to the Repair Manual.

  (2) Place the camshaft on the cylinder head so as to make the camshaft as level as possible.
  (3) Tighten the camshaft bearing cap mounting bolts uniformly several times, a little at a time. The tightening order differs depending on the engine type, so refer to the Repair Manual.


Back to Components page
