PRO TECHNICIAN

Installation

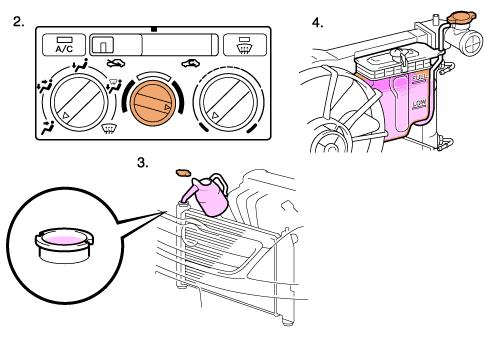

Fill with Coolant

2.
Set the heater temperature to MAX HOT.
3. Fill with coolant to the radiator fill neck.
4. Fill the reservoir with coolant to the Full line.
5. Install the radiator cap.

HINT:
Follow the instructions in the Repair Manual to adjust the proper LLC concentration.
Lightly pumping the radiator hose and heater hose while filling coolant makes it easier for the coolant to flow in.
There are special air removal instructions for some models. Check the Repair Manual when conducting this work.

(25)
