Installation
|
Connect Connectors and Wire Harness
|
|
|
| 2. |

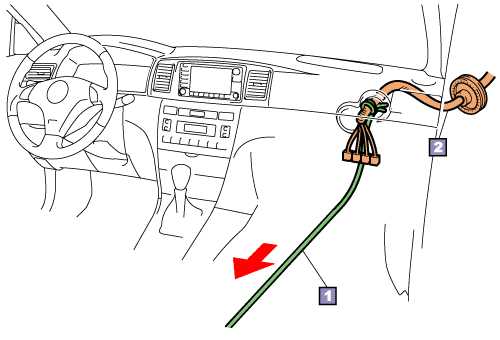

Pull in engine wire |
| (1) |
Tie the engine wire to the string left in the engine room
during removal, and pull in the engine wire to the interior from the engine room. |
| (2) |
Install the grommet. |
| |
| NOTICE: |
| Not fitting in the grommet causes
water to come into the interior, which could damage the electrical components. |
| |
| (3) |
Connect the engine wire connector
to the engine ECU and instrument panel junction block. |
| |
|
|
(23)
|
|
