Installation
|
Connect Fuel Line
|
|
|
|
2.
|

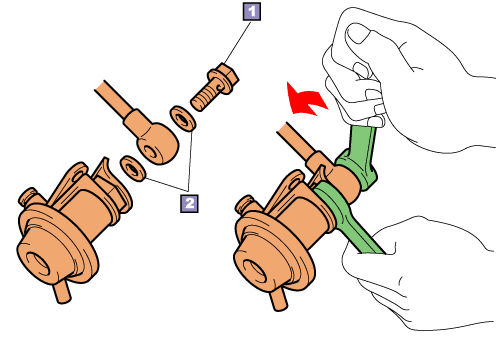

Union bolt type |
| (1) |
Install a new gasket on both connections of the pipeline,
and insert union bolt into the gaskets. |
| |
|
(2)
|
While holding the pipeline straight, hand-tighten
the bolt.
|
| |
|
(3)
|
Hold the mounting components using a wrench
and tighten the union bolt.
|
| |
CAUTION:
Twisting the pipeline or components can cause a fuel leak. |
|
|
(19)
|
|
