Clip |
|
|
Washer |
|
|
Select cable |
|
|
Shift cable |
|
|
|
| |

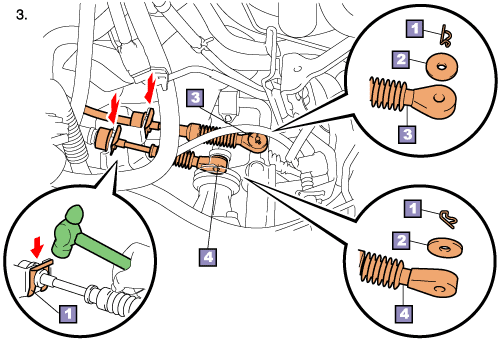

3.
|
Install shift and select cables
|
| |
Bring the shift and select cables
into contact with the transaxle and fasten them in place with a clip. |
NOTICE:
Do not use force to install the shift and select cables.
Otherwise, they may bend. |
HINT:
The particular vehicle model may not permit existing clips
to be reused. Refer to the Repair Manual to confirm whether the clips can be reused
or not. |
| |
|
4. |
Install
drive belt
|
| |
| |
5. |
Tighten the engine mounting mount bolts, through bolt and nut (completely tighten) |
|
