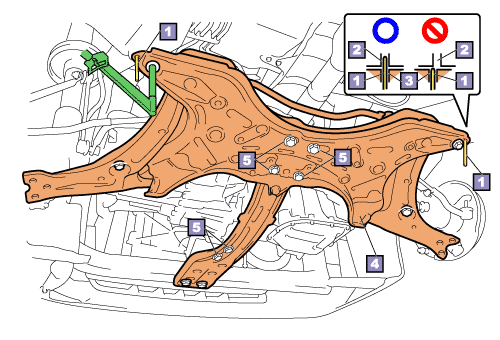

SST (Front crossmember guide tool) |
 |
Reference hole of vehicle body |
 |
Reference hole of suspension member |
 |
Suspension member |
 |
Engine mount mounting bolt |
|
|
|
|
2.
|
Member position alignment
|
| (1) |
Insert SST into the reference holes of the vehicle
body and suspension member, and hand-tighten all bolts. |
| (2) |
Temporarily install and hand-tighten the mounting
bolts on the engine mount. |
| (3) |
Fully tighten suspension member mounting bolts
to the specified torque. |
| |
NOTICE:
Do not remove the engine lifter until the suspension member
has been mounted completely. |
|
