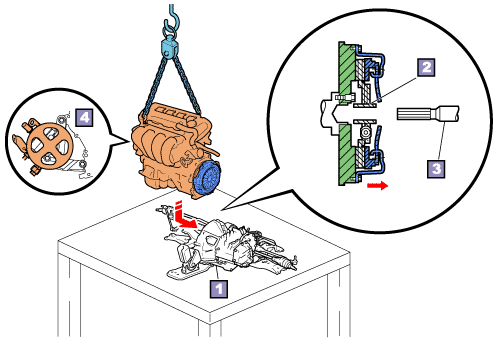

Transaxle |
|
|
Clutch disc |
|
|
Transaxle input shaft |
 |
Power steering vane pump |
|
|
|
| 1. |
Install engine to transaxle |
|
(1)
|
Apply spline grease to the transaxle input shaft.
|
| (2) |
Align the positions of the transaxle input shaft with the
clutch disc spline, and mount the transaxle on the engine. |
HINT:
If the splines are not aligned, align the positions by rotating
the crankshaft. |
| |
| (3) |
Install and tighten the engine and transaxle mounting bolts. |
| |
| (4) |
Install the power steering vane pump. |
|
