Disassembly

Remove Oil Seal
Click on the underlined sentence.

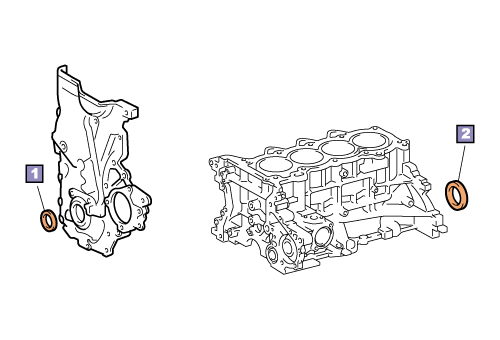

Timing chain cover oil seal
Engine rear oil seal

1. Remove timing chain cover oil seal
  Pry off the timing chain cover oil seal using a screwdriver.
NOTICE:
Place a cloth over the timing chain cover in order to protect it from damage.

  2. Remove engine rear oil seal
  Remove the engine rear oil seal from the crankshaft.
