Remove Cylinder Head

Click on the underlined sentence.

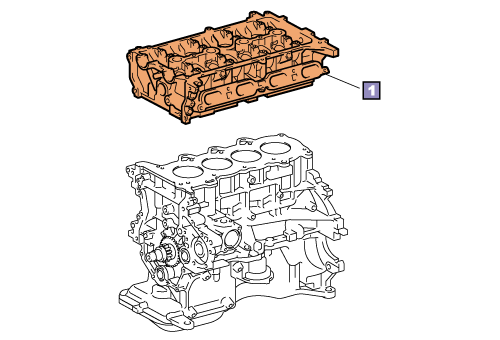

Cylinder head




1. Remove cylinder head bolts

  2. Remove the cylinder head
  Tap the rib portion with a plastic hammer to remove the cylinder head.

HINT:
When the head is removed, water and oil will leak from the water jacket and the oil hole. When placing the removed head on a working bench or a disassembly pan, lay a cloth on the bench or pan and let it absorb the oil to keep the working area clean.
