Disassembly
Remove Camshaft Timing Gear/Sprocket
Click on the underlined sentence.

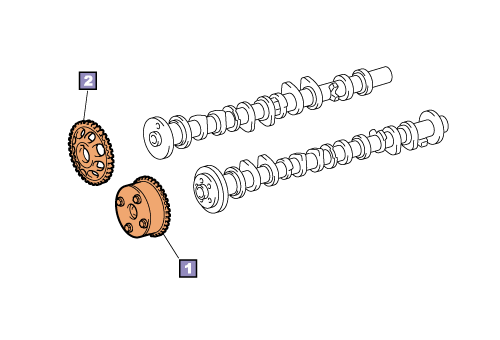

Camshaft timing gear (with VVT-i)
Camshaft timing sprocket (without VVT-i)
1.
Remove camshaft timing gear ( with VVT-i)
2.
Remove camshaft timing sprocket (without VVT-i)
(1)
Hold the camshaft in a vise between aluminium plates.
(2)
Remove the camshaft timing sprocket (without VVT-i)
Back to Components page
