Disassembly

Remove Crankshaft Pulley
Click on the underlined sentence.

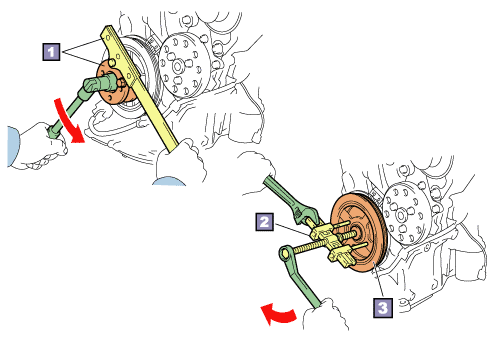

SST (Crankshaft pulley holding tool, Companion flange holding tool)
SST (Puller C set)
Crankshaft pulley

1. Set position of piston

2. Remove crank shaft pulley
  (1) Using SST, hold the crankshaft pulley and remove the bolts.

  (2) Using SST, remove the crankshaft pulley.

Back to Components page
(3)
