Combustion Cycle
Click on the underlined sentence.
3.
Diesel engine combustion process

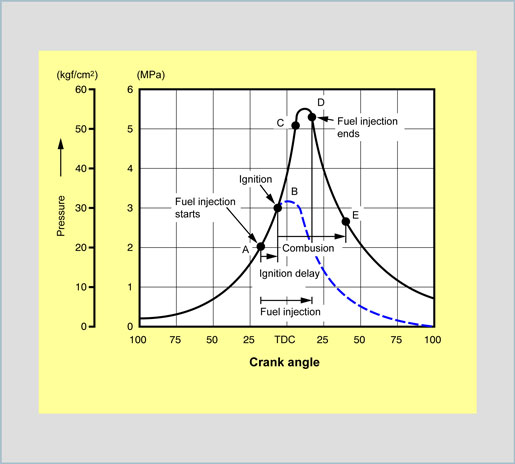

For the combustion process that occurs in the diesel engine, there is a relationship between the pressure inside the combustion chamber and the crank angle as shown on the left.
This combustion process can be divided into the following four stages.
(1)
Ignition delay (A - B)
(2)
Flame propagation (B - C)
(3)
Direct combustion (C - D)
(4)
After burning (D - E)
Combustion process (A - E)
