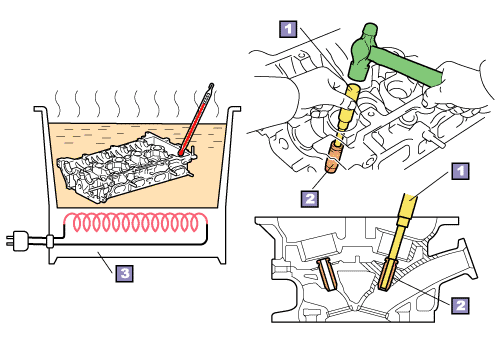

SST (Valve guide bushing remover & replacer) |
|
|
Valve guide bushing |
|
|
Heater |
|
|
|
| The valve guide bushing can be easily
removed by first warming the cylinder head to cause it to expand. |
| |
| 1. |
Remove valve guide bushing |
| (1) |
Warm the cylinder head from 80 to 100°C (176 to 212°F). |
| NOTICE: |
| The cylinder head could deform if
heated too much. |
| |
| (2) |
Place SST against the valve guide bushing and strike SST with
a hammer to punch out the bushing through the combustion chamber. |
|
