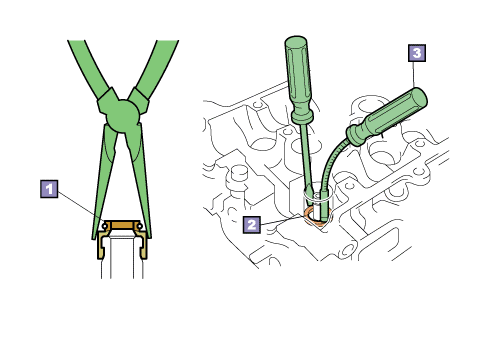

Valve stem oil seal |
 |
Valve spring seat |
 |
Magnetic handle |
|
|
|
| 1. |
Remove valve stem oil seal
|
| Hold the metallic section
of the stem oil seal bottom using needle nose pliers, and remove
the stem oil seal. |
| NOTICE: |
| Do not pull the rubber
section of the stem oil seal because the rubber will break. |
| |
| 2. |
Remove valve spring seat |
| (1) |
Using a screwdriver, lift up the
valve spring seat. |
| (2) |
Using a magnetic handle, lift out
the valve spring seat. |
|
