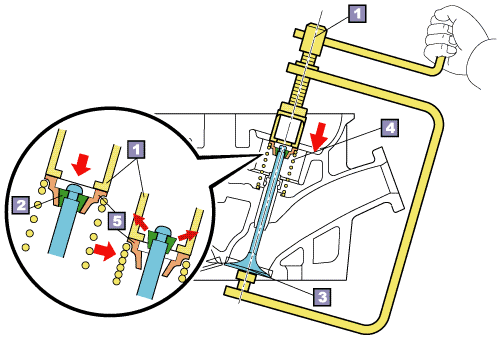

SST (Valve spring compressor) |
|
|
Keeper |
|
|
Valve |
|
|
Valve spring |
|
|
Valve spring retainer |
|
|
|
|
1.
|
Set the SST so that it aligns
in a straight line with the bottom of the valve and the spring
retainer.
|
|
2.
|
Tighten SST to compress the spring
and remove both keepers.
|
|
3.
|
Loosen SST, remove the spring
retainer and the spring, and then remove the valve by pushing
it out towards the combustion chamber.
|
|
