Reassembly

Install Crankshaft

Click on the underlined sentence.

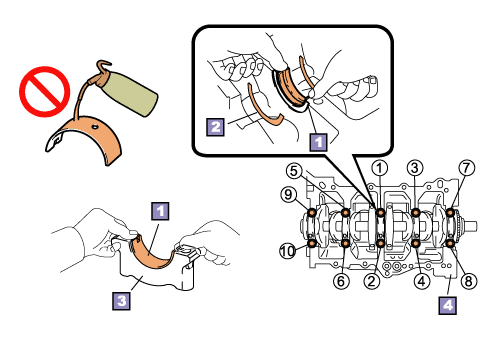

to is the installation order of the bearing cap.
Bearing
Thrust bearing
Crankshaft bearing cap
Cylinder block




Install crankshaft
  (1)
Install the bearing and thrust washer on the bearing cap and cylinder block.
  (2) Coat the surfaces of the bearing with engine oil.
NOTICE:
Do not coat the back of the bearing with oil.
The heat generated by the bearing is dissipated to the cylinder block via the back of the bearing. If oil is applied to the back of the bearing, it will prevent contact between these components, causing the heat dissipation effect to decline.

  (3) Place the crankshaft on the cylinder block.
  (4) Torque the bearing cap mounting bolts.

  (5) After assembling crankshaft, make sure that the crankshaft can be turned by hand.
