Inspection

Inspect Crankshaft
Click on the underlined sentence.

Dial gauge
V-block

Inspect the crankshaft for the following three items:
1. Shaft runout

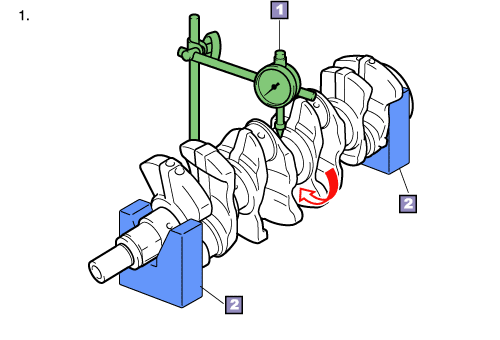

  Place the crankshaft on V-blocks and use a dial gauge to measure the circle runout.

2. Crankshaft main journal and crank pin diameter measurement

3. Inspect timing sprocket wear
