Disassembly
Disassemble Piston
Click on the underlined sentence.

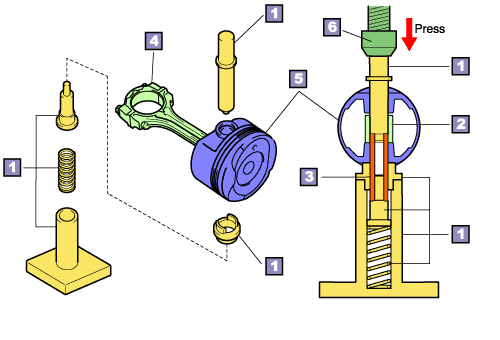

SST (Piston pin remover and replacer)
Connecting rod
Piston pin
Bearing cap
Piston
Hydraulic press
2.
Remove piston pin
(1)
Set the piston straight into SST.
NOTICE:
If SST and piston are slanted, the piston could crack.
(2)
Push SST with a hydraulic press and remove the piston pin.
