Disassembly

Remove Crankshaft

Click on the underlined sentence.

to is the removal order of the bearing cap.
Bearing cap bolt
Bearing cap
Bearing

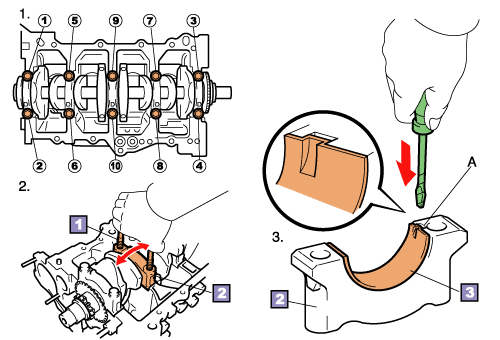

1. Remove crankshaft bearing cap
    Remove the crankshaft bearing cap bolts in sequence from outside to inside.
HINT:
If the bearing cap cannot be easily removed, insert the two removed bolts into the bolt holes and wiggle them while removing the cap.

  2. Remove crankshaft
  Remove the crankshaft by pulling it straight out from the top.

  3. Remove bearing
  Carefully insert a flat-head screwdriver into the slit (section A) of the bearing cap and remove the bearing by prying it outward using the screwdriver.
