Reduction Starter.
|
Operation
|
|
|
| <2> |
Hold-in
|
When the main contacts engage, current no longer flows through the pull-in coil, and the field coil and the armature coil receive current directly from the battery. The armature then starts to revolve at high-speed, and the engine cranks. At this time, the plunger is only held in position by the magnetic force exerted by the hold-in coil because no current is flowing through the pull-in coil.

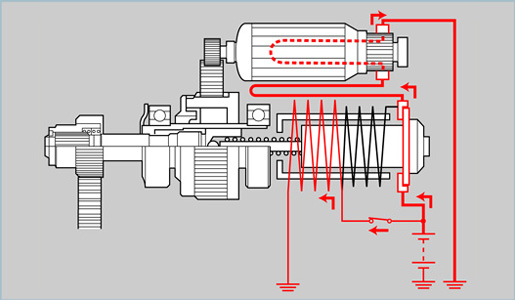

The figure on the left below summarizes the flow of current in the hold-in step. |
|
(17)
|
|
