Reduction Starter
|
Construction
|
|
|
| 1. |

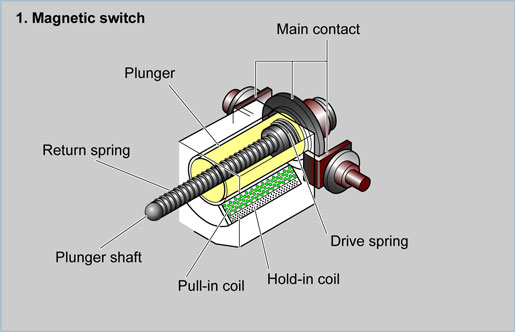

Magnetic switch
|
The magnetic switch operates as the main switch for the current flowing to the motor and controls the engagement and disengagement of the pinion gear.
The pull-in coil is wound with thicker (increased gauge) wire than the hold-in coil and therefore the magnetomotive force of the pull-in coil is also greater than that of the hold-in coil. |
|
