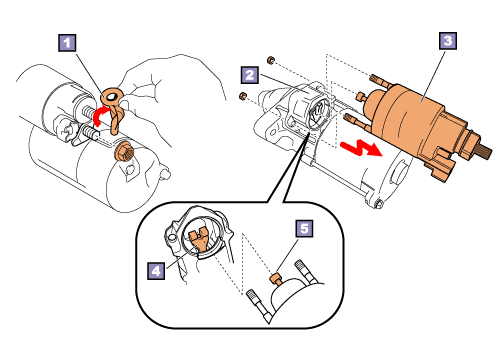

Lead wire |
|
|
Starter housing |
|
|
Magnet starter switch |
 |
Drive lever |
 |
Plunger hook |
|
|
|
| 1. |
Disconnect lead wire |
|
(1)
|
Remove the set nut and disconnect the lead wire. |
| |
| 2. |
Remove magnet starter switch assembly |
|
(1)
|
Remove the 2 nuts and pull the magnet starter switch rearward. |
| |
|
(2)
|
Pull the tip of the magnet starter switch upward and unhook
the plunger hook from the drive lever. |
| |
|
(3)
|
Remove the magnet switch. |
|
