Installation

Install Radio Receiver Assembly
Click on the underlined sentence.

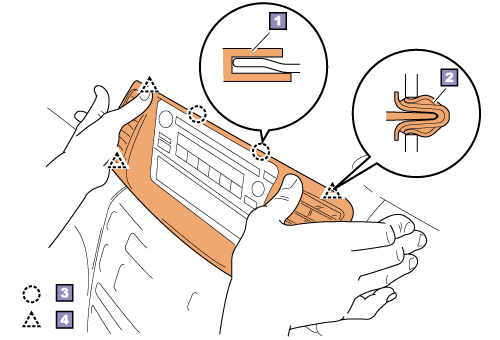

Claw (A type)
Claw (B type)
Claw installation position (A type)
Claw installation position (B type)
  1. Install radio receiver assembly

2. Install instrument cluster finish panel
  (1) Align the claws with their installation positions.
  (2) IGently press the instrument cluster panel into position.
