Removal

Remove Radio Receiver Assembly
Click on the underlined sentence.

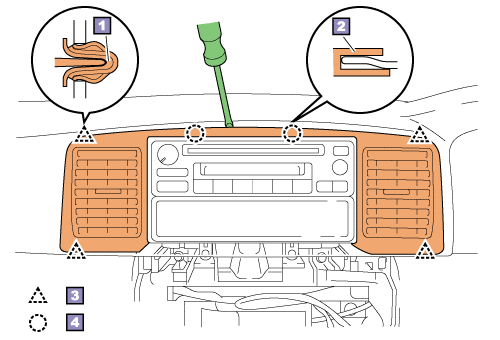

Claw (A type)
Claw (B type)
Claw installation position (A type)
Claw installation position (B type)
  1. Remove instrument cluster finish panel
  (1) Disengage the claws.
  (2) Remove the instrument cluster finish panel by pulling it forward.

2. Remove radio receiver assembly

(8)
