Removal

Remove Combination Meter
Click on the underlined sentence.

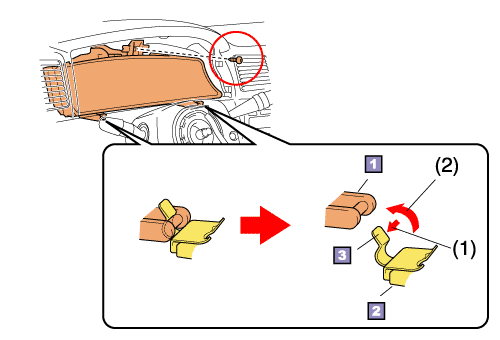

Combination meter side
Instrument panel side
Tip of the Clip
  1. Remove combination meter cover

2. Remove combination meter
  (1) Press the tips of the two clips.
  (2) Pull up the meter to disengage.
(3) Disconnect the connector and remove the combination meter.

(6/1)
