Installation
|
Install Fender Liner
|
|
|
| 1. |

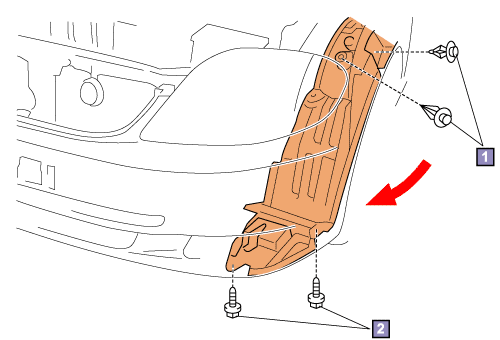

Install fender liner |
| (1) |
Align the locating holes of the fender liner with those in the front fender. |
| (2) |
Temporarily install all the clips and screws before finally tighten the screws evenly. |
| |
| HINT: |
| The fender liner is made from soft resin, so be careful not to crease or fold during installation. |
| |
| (3) |
Remove the masking tape. |
|
|
