Inspection
Inspect Headlight Circuit Voltage
Click on the underlined sentence.
Battery voltage
(2)

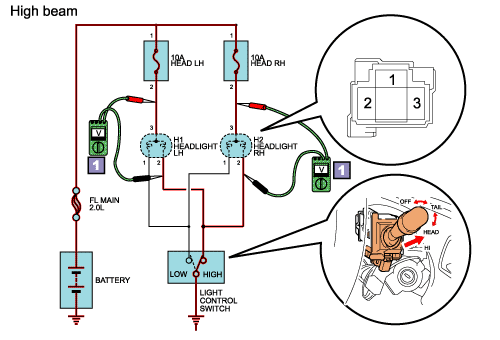

Connect the tester leads to the terminals as shown in the illustration.
HINT:
Check the voltage by connecting the tester leads to the headlight connector of the vehicle side (back probe).
NOTICE:
Applying excessive force to the terminal when testing can cause damage to the terminal conector.
(3)
Check that the light control switch and the voltage of the terminal change when the light control is switched between low and high.
•
Low beam
•
High beam
(4)
Disconnect the battery negative (-) terminal and the light control switch connector.
