Introduction to using the EWD |
To Find the Desired Location |
 |

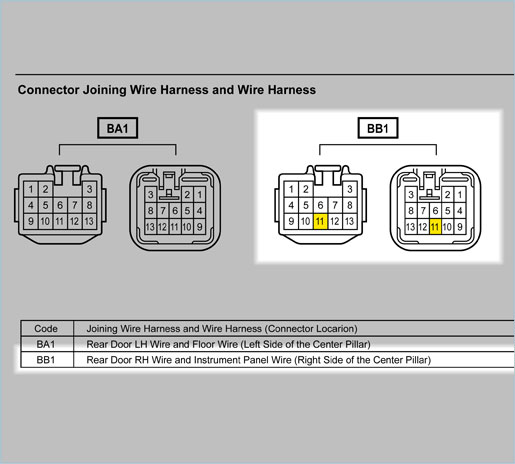

Then, turning to the next page we can find the BB1 pin number diagram. This shows us the shape of the connector and the position of pin 11 of connector BB1.We can also find the position of this pin by searching for the connector code in the section titled "CONNECTOR LIST". |
(27) | |
