Introduction to using the EWD |
Power Source |
 |

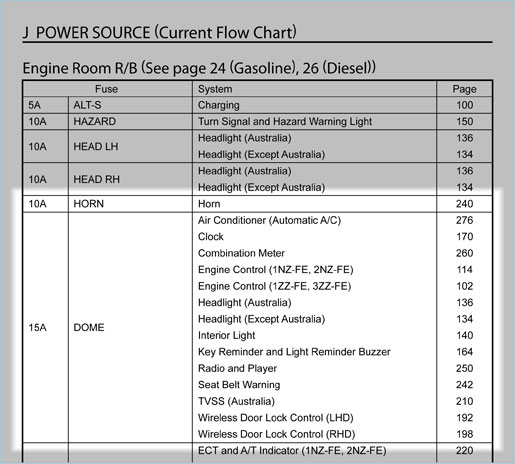

The POWER SOURCE section of the EWD details which systems are protected by each fuse. Using the example shown here, the diagram indicates that the horn circuit (system) is protected by the HORN fuse which is rated at 10 amperes. This fuse only functions to protect the horn circuit. In comparison, the 15A DOME fuse covers multiple systems, including the Interior Light, Air Conditioner (Automatic A/C), Clock, Combination Meter, and many others depending on the destination. The page numbers in the diagram refer to the particular system circuit pages. |
(21) | |
