Introduction to using the EWD |
Connector Joining Wire Harness and Wire Harness |
 |

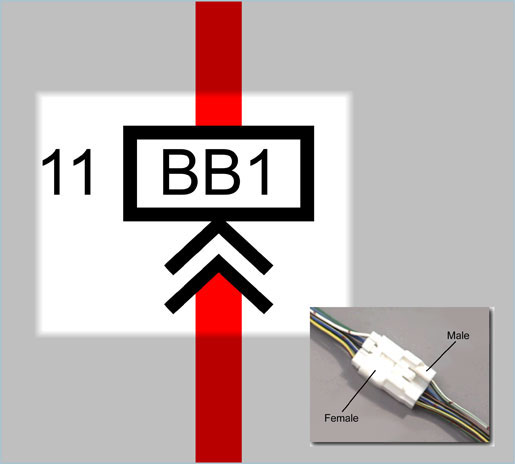

The alphanumeric characters in the rectangle (BB1) show the connector code, and the number outside the rectangle (11) shows the pin number. Also, the symbol (  ) indicates a male connector side.
|
(18) | |
