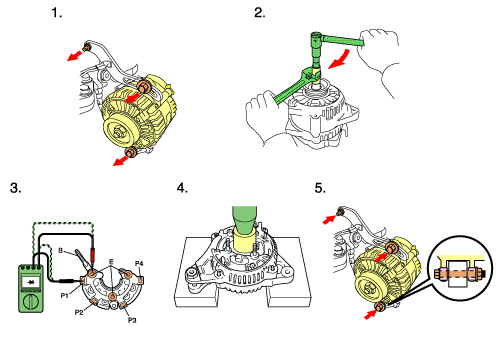

| The following pages are designed to enable you to master the inspection and repair procedures of electrical equipment, including the functions of the charging system by performing the following work. |
| |
|
1.
|
Removal |
| Remove the drive belt and then remove the alternator
from the vehicle. |
| |
|
2.
|
Disassembly |
| Remove the pulley from the alternator, and then
disassemble the rotor, rectifier and field coil. |
| |
|
3.
|
Inspection |
| Check continuity of the rotor, rectifier, etc. |
| |
|
4.
|
Reassembly |
| Reassemble the disassembled rotor, rectifier,
and field coil. |
| |
|
5.
|
Installation |
| Install the alternator on the vehicle and adjust
the drive belt tension. |
