Refrigeration System
|
Condenser
|
|
|
| 1. |
Function
|
| The condenser cools the high temperature, high pressure gaseous refrigerant delivered by the compressor and changes it into a relatively high-temperature, high-pressure refrigerant that is now mostly in the liquid state. However, the refrigerant still contains a small amount of gaseous content, even after leaving the condenser. |
| 2. |
Construction
|

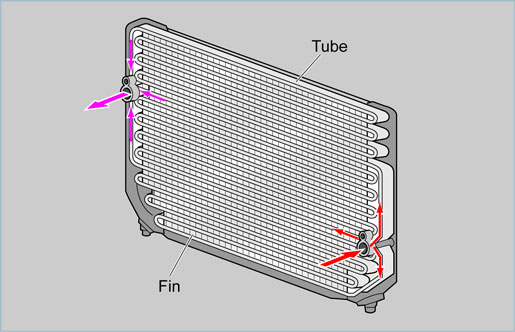

| The condenser consists of tubes and fins, and is installed on the front surface of the radiator. |
| 3. |
Operation
|
| The high-temperature, high-pressure gaseous refrigerant sent from the compressor separates out into the 3 internal passages, or tubes, at the entry port of the condenser before passing through the condenser to be cooled. |
|
