Click on the underlined sentence.
|
| 1. |
Functions
|
| After being converted into low-temperature, low-pressure gas, the refrigerant is compressed by the compressor, and changed into high-temperature, high-pressure gas. It is then sent to the condenser. |
| 2. |

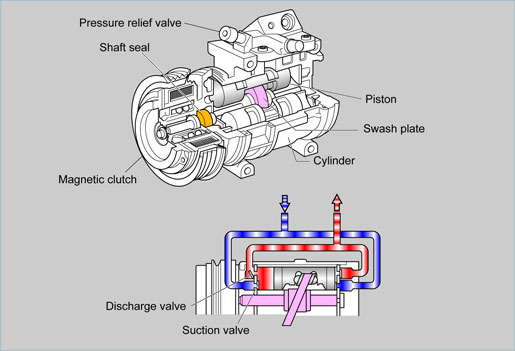

Swash plate type compressor
|
| (1) |
Construction
|
A number of paired pistons are set on the swash plate at intervals of 72° for a 10-cylinder compressor or at intervals of 120° for a 6-cyiinder compressor.
When one side of a piston is in a compression stroke, the other is in a suction stroke. |
| (2) |
Operation
|
|
|
