Installation

Install A/C Compressor
Click on the underlined sentence.

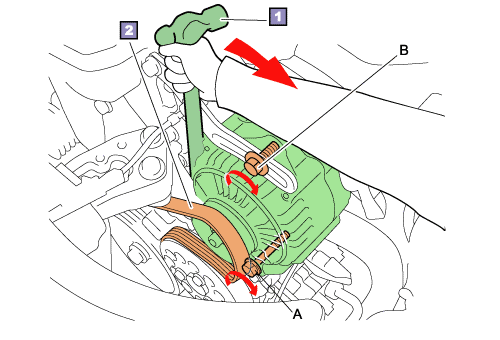

Hammer
Drive belt



  1. Install A/C compressor

2. Install A/C compressor pipes

3. Install drive belt
  (1) With the alternator mounting bolts A and B installed but not tensioned, mount the belt on all of the pulleys.
  (2) Using a lever (a hammer handle or a hub nut wrench), move the alternator to adjust the belt tension, and then torque bolt B to the specified tension.
(3) Check the drive belt tension and torque bolt (A).

(48/2)
