Removal

Remove A/C Compressor
Click on the underlined sentence.

Drive belt



  1. Remove drive belt

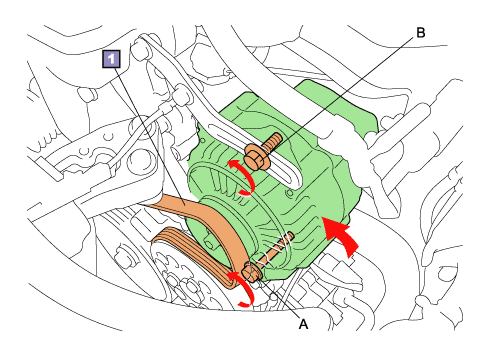

  (1) Loosen the mounting bolts (A) and (B) of the alternator that are used to adjust the drive belt tension.

(2) By hand, push the alternator toward the engine and then remove the drive belt.
NOTICE:
Pulling the drive belt to move the alternator will damage the belt.

2. Disconnect pipes from A/C compressor

(43)
