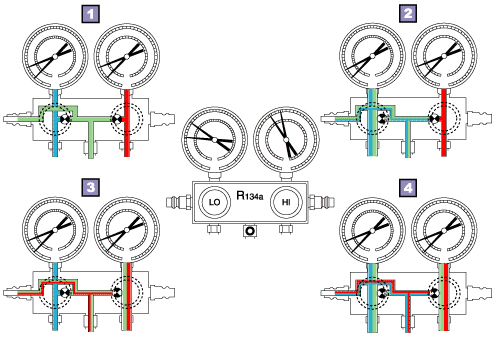

Low valve close/High valve close |
|
|
Low valve open/High valve close |
|
|
Low valve close/High valve open |
|
|
Low valve open/High valve open |
|
|
| 1. |
Characteristics of manifold gauge |
| (1) |
The manifold gauge set consists of high and low-pressure gauges and hand operated valves. |
| (2) |
The high an low pressure passages within the manifold gauge set are controlled using the hand valves. |
| |
|
HINT:
A manifold gauge set isdesigned for used with a specific refrigerant. For example a gauge set for HFC-134a (R134a) cannot be used for an A/C system that uses CFC-12 (R12).
|
|
