Principle of Torque Converter.
|
Torque Multiplication
|
|
|

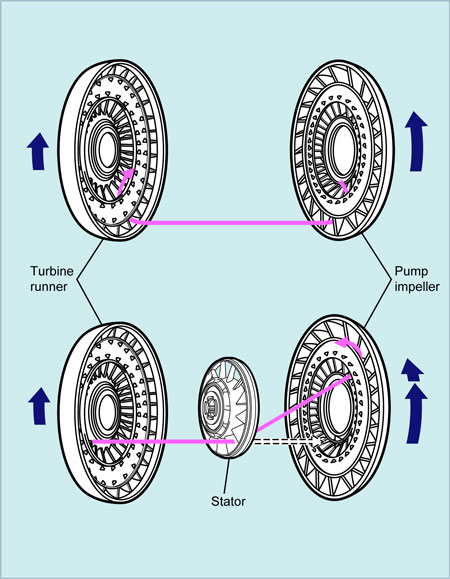

Torque multiplication by the torque converter is performed by returning the fluid, which still has energy after it has passed through the turbine runner, into the pump impeller by use of the stator vane.
In other words, the pump impeller is rotated by the torque from the engine, to which is added the torque of the fluid returning from the turbine runner. That is to say, the pump impeller multiplies the original input torque for transmission to the turbine runner. |
|
