Construction. |

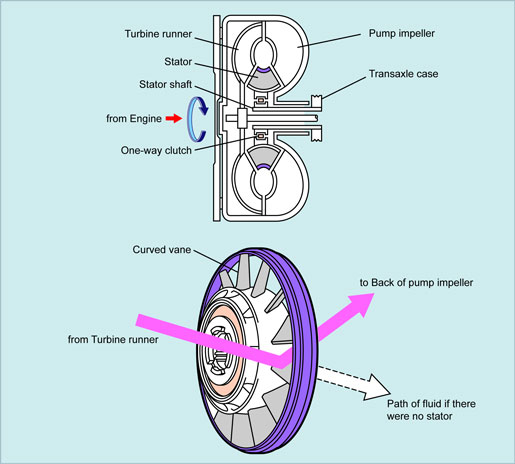

Stator |
|
|
The stator is located between the pump impeller and the turbine runner. It is mounted, via a one-way clutch on the stator shaft, which is fixed to the transaxle case. |
|
|
