Construction. |

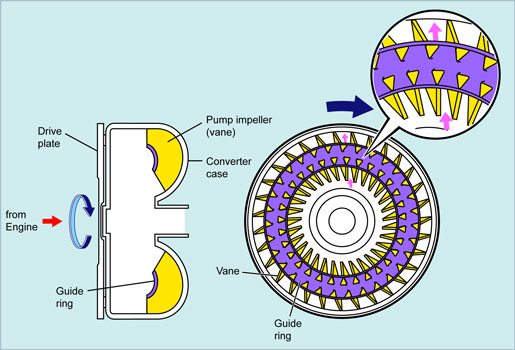

Pump Impeller |
 |
The pump impeller is integrated with the converter case and is connected to the crankshaft via the drive plate.
Many curved vanes are mounted on the inside of the pump impeller. A guide ring is installed on the inner edges of the vanes to provide a path for smooth fluid flow. |
|
