5.
|

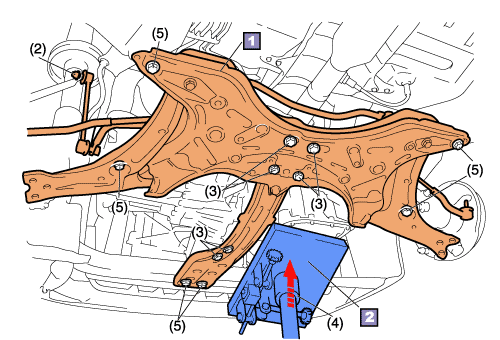

Remove suspension cross member and centre member
|
|
(1)
|
Raise the chain block until light tension is
applied.
|
|
CAUTION:
|
|
•
|
If the chain block is raised too high, the vehicle
could be raised off of the lift creating a very dangerous situation.
|
|
•
|
If the tension on the sling device right and
left chains is not equal, the engine could tilt greatly to one side creating a
very dangerous situation.
|
| |
| (2) |
Remove the nut and stabilizer link. |
| (3) |
Remove the engine mount bolts and nut, and separate the engine
mount from the suspension member. |
|
(4)
|
Support suspension cross member with transmission
jack.
|
| (5) |
Remove the member mounting bolts and then separate the suspension cross member, centre member, lower arm, power steering gear and stabilizer as a unit. |
