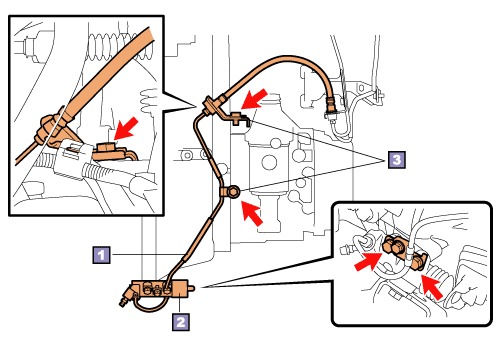

Clutch flexible hose tube |
|
|
Clutch release cylinder |
|
|
Clamp |
|
|
|
|
3.
|
Remove clutch release cylinder
|
|
Remove the clamp holding the flexible hose tube
and then remove the release cylinder from the transaxle in one unit together with
the tube and clamp.
|
| |
|
NOTICE:
Do not deform the release flexible hose tube.
|
HINT:
The flexible hose tube should not be separated from the
release cylinder. Separating the flexible hose tube and the release cylinder will
cause air to enter the clutch system. |
|
