1.
|
Disconnect battery cable |
|
Before disconnecting the battery cable, make
a note of the information stored in the ECU, etc.
|
|
•
|
DTC
(Diagnostic Trouble Code)
|
|
•
|
Radio station selection
|
|
•
|
Seat position
(with memory system)
|
|
•
|
Steering wheel position
(with memory system)
|
| |
etc. |
| |
| 2. |

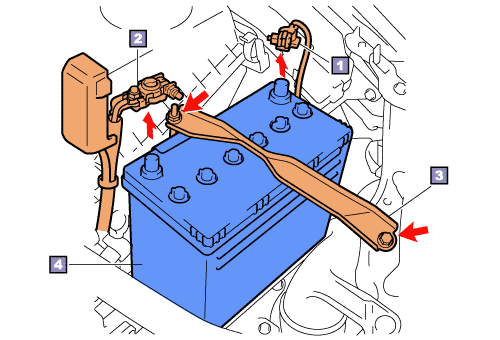

Remove battery |
| Remove the battery clamp and remove
the battery. |
|
(1)
|
Disconnect the battery negative terminal cable.
|
|
(2)
|
Disconnect the battery positive terminal cable.
|
|
(3)
|
Remove the battery clamp.
|
|
(4)
|
Remove the battery.
|
| |
NOTICE:
The battery case contains liquid electrolyte (dilute
sulfuric acid), so keep the battery level to prevent the liquid from spilling
out. |
