Reassembly
Install Shift Fork and Shift Fork Shaft
Click on the underlined sentence.
2.
Install shift fork and shift fork shaft
Install the shift fork and shift fork shaft in the following sequence:
(1)
Gear shift fork No.1
(1st and 2nd gears)
(2)
Gear shift fork No.2
(3rd and 4th gears)

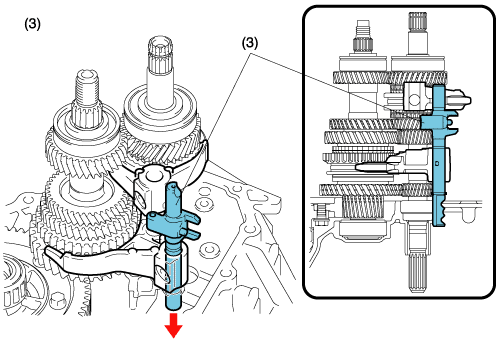

(3)
Gear shift fork shaft No.1
(1st and 2nd gears)
(4)
Gear shift fork shaft No.3 with reverse shift fork
(5th and reverse gears)
(5)
Gear shift head No.1
(3rd and 4th gears)
(6)
Gear shift fork shaft No.2
(3rd and 4th gears)
(13)
