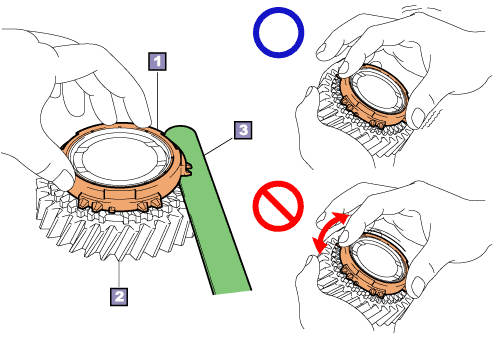

Synchronizer ring |
|
|
Gear |
|
|
Thickness gauge |
|
|
|
|
2.
|
Inspect synchronizer ring
|
| Apply pressure to the gear and synchronizer
ring with the hands. While maintaining this pressure, use a thickness gauge to
measure the clearance around the entire circumference. |
| HINT: |
| As the inner surface circumference
of the synchronizer ring wears, the ring tends to cave in towards the gears thereby
closing the clearance distance between the gear and synchronizer ring. |
| |
|
3.
|
Inspect synchronizer ring operation
|
| Apply pressure to the synchronizer
ring to install it with the cone of gear by hand. Then make sure that the synchronizer
ring does not slip when applying force in the turning direction. |
|
