Construction and Function of Gear Shifting Mechanisms.
|
Gear Shifting Mechanisms
|
|
|
| 1. |
Construction
|

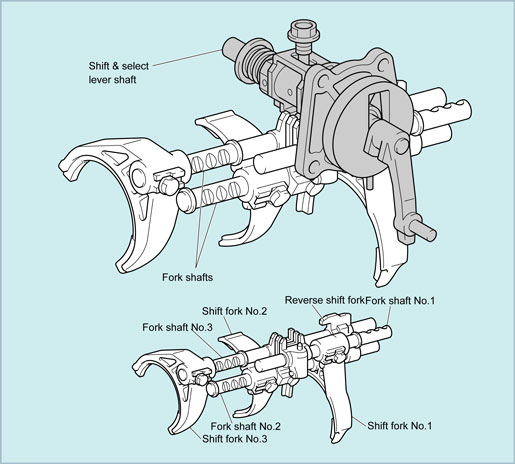

The shift and select lever shaft are set at right angles to the fork shafts on top of the transaxle case.
A double-meshing prevention mechanism and reverse gear mis-shift prevention mechanism are adopted.
Also, a shift detent mechanism and reverse detent mechanism are adopted on the shift fork shaft. |
|
|
(21)
|
|
